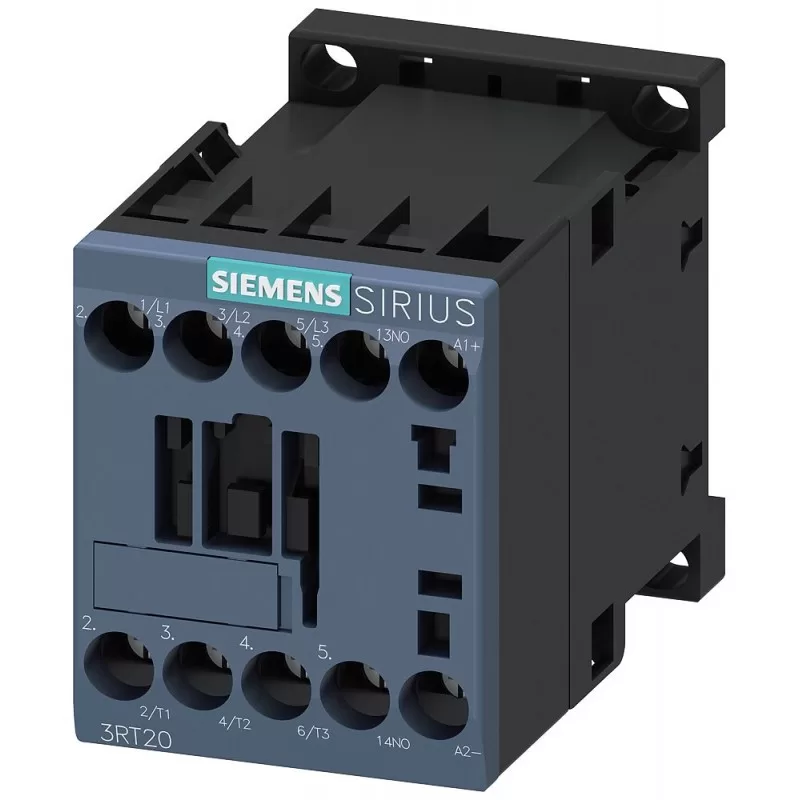

Siemens 3RT2015-1BB41 is a compact and reliable contactor designed for controlling electrical loads in industrial applications. Here’s an overview of its features and specifications:

Key Features:

1. Contact Configuration: The 3RT2015-1BB41 contactor has three main contacts, including one NO (normally open) and one NC (normally closed) contact.
2. Rated Operational Current: It is rated for a maximum operational current of 7 A AC-3 (AC-3 refers to the utilization category for motor loads).
3. Coil Voltage: The coil voltage is rated for 24V AC, making it suitable for typical industrial control voltages.
4. Mounting: This contactor is designed for panel mounting, typically on DIN rails or other suitable mounting surfaces.
5. Compact Design: Its compact size saves space in control panels and electrical enclosures, making it suitable for applications with limited space.
6. AC-3 Utilization Category: The AC-3 utilization category indicates that this contactor is suitable for starting, stopping, reversing, and regulating motors in normal operation.
7. High Durability: Siemens contactors are known for their high-quality construction and long service life, ensuring reliable performance in industrial environments.

Technical Specifications:

• Manufacturer: Siemens
• Series: Sirius
• Model: 3RT2015-1BB41
• Main Contacts: 1 NO + 1 NC
• Rated Operational Current: 7 A (AC-3)
• Coil Voltage: 24V AC
• Utilization Category: AC-3
• Mounting: Panel mount (DIN rail)
• Dimensions: Compact design, suitable for space-constrained applications

Applications:

• Motor Control: The 3RT2015-1BB41 contactor is commonly used to control motors in industrial machinery, conveyor systems, pumps, fans, and other equipment.
• Heating and Lighting Control: It can also be used to switch resistive loads such as heaters, lighting, and solenoid valves.
• HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, the contactor can control compressor motors and other components.
• Industrial Automation: It finds applications in various industrial automation tasks where reliable switching of electrical loads is required.

Benefits:

• Reliable Performance: Siemens contactors are known for their high-quality construction and reliable performance, ensuring smooth operation in industrial environments.
• Compact Design: The compact size of the contactor allows for easy installation in control panels and electrical enclosures with limited space.
• Versatile: Suitable for a wide range of applications, including motor control, heating control, lighting control, and more.
• Easy Installation: Designed for panel mounting, the contactor can be easily installed on DIN rails or other suitable mounting surfaces.
• Long Service Life: Siemens contactors are built to withstand harsh industrial conditions and provide long service life with minimal maintenance.

Considerations:

• Coil Voltage Compatibility: Ensure that the coil voltage of the contactor matches the control voltage of your application.
• Load Compatibility: Verify that the contactor’s rated operational current and voltage are compatible with the electrical load you intend to control.
• Environmental Conditions: Consider factors such as temperature, humidity, and vibration levels in the installation environment to ensure reliable operation.
• Safety: Follow proper safety precautions when installing and operating electrical equipment, including the use of appropriate personal protective equipment (PPE) and adherence to safety standards and regulations.

The Siemens 3RT2015-1BB41 contactor is a reliable and versatile solution for controlling electrical loads in various industrial applications. With its compact design, high-quality construction, and compatibility with Siemens control systems, it provides reliable performance and easy integration into industrial control systems.
