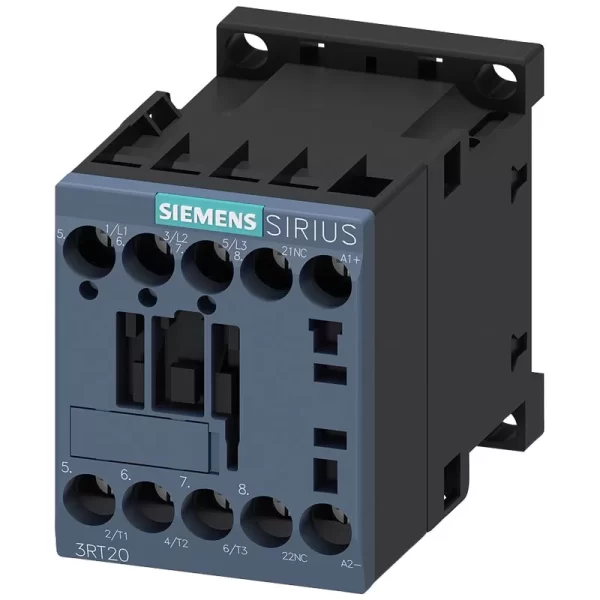

Siemens 3RT2015-1BB42 is a motor contactor, part of the 3RT2 series, used in industrial applications to control electric motors and other loads. Here’s a detailed overview of its key features and specifications:

Key Features:

1. Motor Contactor: Specifically designed for switching and protecting electric motors.
2. Rated Operational Current: Suitable for various motor current ratings, ensuring compatibility with different motor sizes.
3. Auxiliary Contacts: Equipped with auxiliary contacts for additional control and signaling functions.
4. Compact Design: Optimized for space-saving installations in control panels and enclosures.
5. Durability: Built to withstand demanding industrial environments with robust construction.

Technical Specifications:

• Manufacturer: Siemens
• Series: 3RT2 series
• Model: 3RT2015-1BB42
• Rated Operational Current (AC-3): Typically up to 7A, suitable for motors up to 3 kW (4 HP) at 400V AC
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Coil Voltage: 24V DC (indicated by the suffix “1BB42”)
• Operational Voltage: Suitable for various operational voltage levels, standard voltage up to 690V AC
• Utilization Category: AC-3 (for switching motor loads)
• Mechanical Durability: High mechanical durability with a large number of switching cycles
• Mounting: Can be mounted on DIN rail or panel-mounted
• Protection Class: IP20 (finger-safe terminals)
• Temperature Range: Suitable for operation in a wide range of temperatures, typically from -25°C to +60°C

Applications:

• Motor Control: Used for starting, stopping, and protecting electric motors in industrial applications.
• Industrial Automation: Integrated into automation systems for controlling machinery and equipment.
• Power Distribution: Used in power distribution panels for controlling various electrical loads.
• Process Control: Employed in process control systems for reliable motor operation and protection.

Benefits:

• Reliability: Ensures reliable operation and protection of motors in industrial environments.
• Flexibility: Compatible with a range of motor sizes and control voltages, providing flexibility in design.
• Ease of Installation: Compact design and DIN rail mounting facilitate easy and quick installation.
• Safety: IP20 protection class ensures safety by preventing accidental contact with live parts.

Considerations:

• Compatibility: Verify the contactor’s compatibility with the motor’s rated current and control voltage.
• Control Voltage: Ensure that the control voltage matches the coil voltage of the contactor (24V DC in this case).
• Environmental Conditions: Consider the operating environment’s temperature and protection requirements.

The Siemens 3RT2015-1BB42 motor contactor is an essential component for reliable motor control in industrial settings. Its robust design, high durability, and ease of installation make it suitable for various applications in automation, power distribution, and process control.
