Description

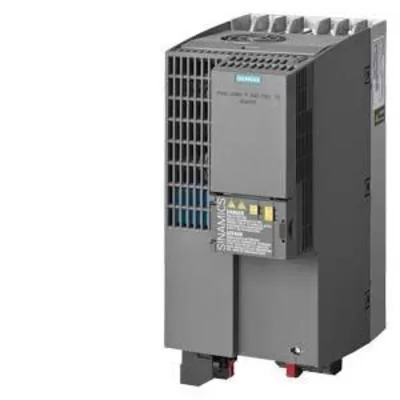

Siemens 6SL3210-1KE22-6AF1 is a component of the SINAMICS G120 family, a series of high-performance variable frequency drives (VFDs) designed for efficient and precise motor control in industrial applications.

Key Features

  1. Advanced Motor Control:
    • Compatible with both asynchronous (induction) and synchronous motors.
    • Supports various control modes such as V/f (voltage/frequency) control, sensorless vector control (SLVC), and vector control with encoder feedback.
  2. Power and Performance:
    • Provides high dynamic response and accurate speed control.
    • Suitable for a wide range of power ratings, ensuring flexibility for different applications.
  3. Design and Integration:
    • Compact and modular design for easy integration into control cabinets.
    • Flexible configuration options to meet specific application needs.
  4. Energy Efficiency:
    • Features regenerative feedback capabilities for energy savings.
    • Low harmonic distortion ensures stable and efficient power supply.
  5. Safety Features:
    • Includes integrated safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1).
    • Complies with international safety standards to enhance machine safety.
  6. Communication and Connectivity:
    • Supports various communication protocols including PROFIBUS, PROFINET, and EtherNet/IP.
    • Modular communication interfaces provide additional connectivity options.

Benefits

  1. Versatility:
    • Suitable for a broad range of applications from simple to complex machinery.
    • Applicable across multiple industries including manufacturing, processing, and material handling.
  2. User-Friendly:
    • Intuitive setup and operation with user-friendly software tools.
    • Clear diagnostics and fault indication simplify troubleshooting and maintenance.
  3. Reliability:
    • Robust design ensures reliable performance in demanding environments.
    • High-quality components extend service life and reduce downtime.
  4. Scalability:
    • Modular design allows easy expansion to accommodate growing or changing needs.
  5. Cost Efficiency:
    • Energy-efficient operation reduces power consumption and operational costs.
    • Built-in safety features eliminate the need for additional safety components.

Technical Specifications

  • Rated Power: Suitable for a range of power ratings (specific rating depends on model configuration).
  • Input Voltage: Typically supports a wide range of input voltages (e.g., 380-480V AC).
  • Control Modes: V/f control, sensorless vector control (SLVC), vector control with encoder.
  • Communication Interfaces: PROFIBUS, PROFINET, EtherNet/IP, with modular options for additional protocols.
  • Safety Functions: Integrated Safe Torque Off (STO), Safe Stop 1 (SS1).

Applications

  • Pumps and Fans: Efficient control in HVAC and water treatment systems.
  • Conveyors and Material Handling: Smooth and precise control of conveyors and hoists.
  • Machining Tools: High precision control for various machining tools in manufacturing.
  • Mixers and Extruders: Reliable control for mixers, extruders, and other processing equipment.

The Siemens 6SL3210-1KE22-6AF1 SINAMICS G120 power module offers advanced motor control, robust design, and versatile communication capabilities, making it a comprehensive solution for modern industrial automation needs. For detailed technical information and configuration options, refer to the official Siemens documentation or consult a Siemens representative.
