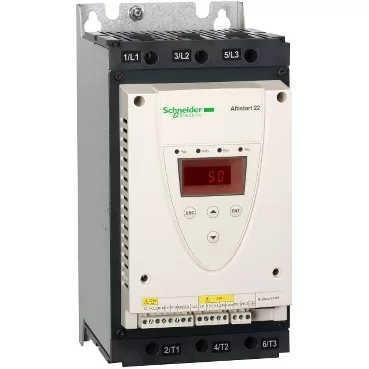

ATS22C14Q Altistart 22, manufactured by Schneider Electric, is an advanced soft starter designed to provide smooth and controlled starting of three-phase asynchronous motors. Here’s an overview of its features and applications:
Key Features:
- Soft Starting: The ATS22C14Q ensures smooth starting of motors by gradually ramping up voltage and current, reducing mechanical stress on the motor and connected machinery.
- Motor Protection: It includes features such as motor thermal protection, adjustable current limitation, and phase loss detection, ensuring the safety and longevity of connected motors.
- Compact Design: With its compact size and DIN rail mounting capability, the ATS22C14Q is easy to install and integrates seamlessly into existing electrical panels.
- User-Friendly Interface: Equipped with an intuitive interface and keypad, this soft starter simplifies configuration and monitoring, allowing users to adjust settings and diagnose issues quickly and efficiently.
- Integrated Bypass Contactor: The built-in bypass contactor reduces energy consumption and minimizes heat dissipation during motor operation, increasing overall efficiency.
- Communication Options: With support for various communication protocols such as Modbus, CANopen, and Ethernet, the ATS22C14Q can be easily integrated into existing control systems for enhanced connectivity and interoperability.
Applications:
- Pumps and Fans: Ideal for controlling pumps, fans, and blowers in water treatment plants, HVAC systems, and industrial processes, ensuring smooth starting and efficient operation.
- Conveyors: Suited for conveyor systems in manufacturing and logistics applications, providing controlled acceleration and deceleration to minimize stress on equipment and materials.
- Mixers and Agitators: Perfect for controlling mixers, agitators, and stirrers in chemical processing, food and beverage production, and pharmaceutical manufacturing, ensuring gentle starting to avoid product damage.
- Compressors: Well-suited for starting compressors in air and gas handling systems, optimizing energy consumption and reducing wear and tear on equipment.
- Variable Torque Loads: Suitable for applications with variable torque loads, such as centrifugal pumps and fans, where controlled starting and stopping are essential to maximize efficiency and prolong equipment life.
The ATS22C14Q Altistart 22 Soft Starter is a reliable and efficient solution for starting three-phase asynchronous motors across various industrial applications. With its advanced features and user-friendly design, it ensures smooth operation, motor protection, and energy efficiency, contributing to improved productivity and reduced maintenance costs.
