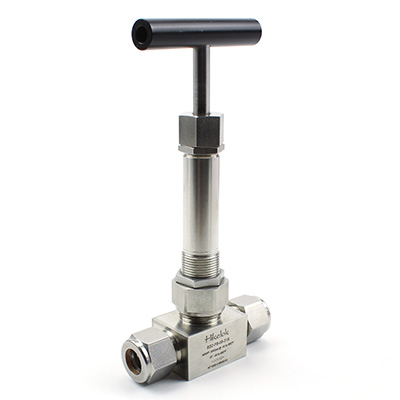

Hikelok BS2-Bellows-Sealed Valves

Hikelok BS2-Bellows-Sealed Valves

Hikelok BS2-Bellows-Sealed Valves

Hikelok BS2 series bellows-sealed valves enhance reliability, versatility, and safety—with a secondary containment system that prevents leaks to atmosphere even if the primary seal fails.Working pressure is up to 2500 psig (172 bar),working temperature is from -20℉ to 1200℉ (-28℃ to 649℃ ). Isolate system fluids and achieve reliable, leak-tight performance with Hikelok BS2 series bellows-sealed valves which use a packless design and a gasketed or welded seal. They are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service.
Features

  • Upper packing provides secondary containment system above the bellows
  • Hydraulic-formed multilayer bellows enhanced cycle life
  • Nonrotating stem tip eliminates galling within the seat area
  • Strictly controlled bellows stroke to improve safety and cycle life
  • Replaceable bellows and stem assembly
  • Regulating, conical, and spherical stem tips available
  • Panel, bottom, and side mounting available
  • Double lock-pins enable steady and durable fastening of the handle
  • Handle color options are available
  • Every Hikelok bellows-sealed valve is factory tested with helium to a maximum leak rate of 4×10-9 std cm3/s at the seat, envelope and all seals

Categories: , ,

Description

Introducing the Hikelok BS2 Bellows-Sealed Valve – your premier choice for precision fluid control in demanding industrial applications. Crafted with cutting-edge technology and engineered for optimal performance, this valve stands as a testament to reliability and efficiency.

Transitioning seamlessly

between different operational states, the Hikelok BS2 Bellows-Sealed Valve ensures a smooth and controlled flow of fluids, guaranteeing unparalleled precision in your processes. Whether you are dealing with corrosive chemicals, high temperatures, or volatile substances, this valve is designed to meet the most rigorous industry standards.

Technical Excellence:

The Hikelok BS2 boasts a robust construction featuring high-grade materials, including stainless steel and other corrosion-resistant alloys. The bellows-sealed design not only enhances durability but also minimizes the risk of fugitive emissions, ensuring a safe and environmentally responsible operation.

Precision Engineering:

With its finely calibrated actuation system, this valve provides precise control over flow rates, enabling you to maintain optimal process conditions. The bellows-sealed design eliminates the need for external sealing, reducing the risk of leaks and ensuring a tight shut-off.

Seamless Operation:

Transitioning effortlessly between open and closed positions, the Hikelok BS2 Bellows-Sealed Valve employs state-of-the-art technology to guarantee smooth and reliable performance. Its ergonomic design and user-friendly interface make installation and operation a breeze, saving you valuable time and resources.

Versatility in Application: From petrochemical plants to pharmaceutical facilities, the Hikelok BS2 Bellows-Sealed Valve proves its versatility across a wide range of industries. Its adaptability to extreme conditions, coupled with its resistance to corrosion, makes it the go-to choice for critical processes.

Enhance your industrial processes with the Hikelok BS2 Bellows-Sealed Valve, featuring precision control, corrosion resistance, and seamless operation. Invest in reliability and efficiency for your fluid management needs.

Upgrade your fluid control system today with the Hikelok BS2 Bellows-Sealed Valve – where technical excellence meets unparalleled performance. Trust in a valve designed for the future of industrial precision.

Check out our others HIKELOK’s Products : https://midmacinternational.com/product-category/mechanical/hikelok/
