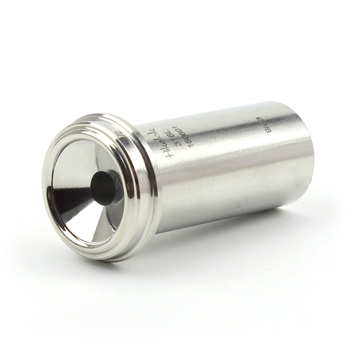

Hikelok Metal Gasket Face Seal Fittings-Blind Gland
Hikelok Metal Gasket Face Seal Fittings offer the high purity of a metalto-metal seal, providing leak-tight service from vacuum to positive pressure.The seal on a VCR assembly is made when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut.Available in sizes from 1/16 to 1 in.and 6 to 18 mm.Silver-plated female threads to prevent galling and ensure easy, consistent assembly.The materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available
Features
- Metal-to-metal seal provides perfect leak-tight service from criticalvacuum to high pressure]
- Female threads are silver plated to prevent galling
- Two test port for easy leak testing
- Non-rotational female nut to prevent transmission of torque
- Available in sizes from 1/16 to 1 in.and 6 to 18 mm
- Hikelok fittings materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available
- Standard surface finish on glands and bodies is a roughness averageof 10uin.(O.25um)Ra
