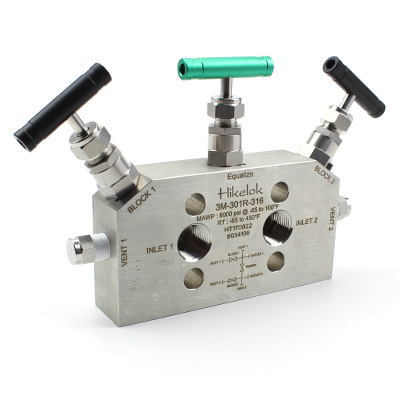

Hikelok 3M-301R-3-Valve

Hikelok 3M-301R-3-Valve

Hikelok 3M-301R-3-Valve manifolds are designed for differential pressure applications. 3-valve manifoldsis composed of three interrelated three valves. According to the function of each valve in the system, it can be divided into: high pressure valve on the left, low pressure valve on the right, and balance valve in the middle. 3 valve manifolds is used with differential transmitter to connect or disconnect the positive and negative pressure measuring chamber from the pressure point, or to connect or disconnect the positive and negative pressure measuring chamber
Features:

  • working pressures: Stainless steel up to 6000 psig (413 bar) Alloy C-276 up to 6000 psig (413 bar)
  • Alloy 400 up to 5000 psig (345 bar)
  • Working temperatures: PTFE packing from -65℉ to 450℉ (-54℃ to 232℃)
  • Graphite packing from -65℉ to 1200℉ (-54℃ to 649℃)
  • Orifice: 0.157 in. (4.0 mm), CV: 0.35
  • Upper stem and lower stem design,
  • Stem threads above packing protected from system media
  • Safety back seating seals in fully open position
  • Testing for every valve with nitrogen at the maximum working pressure
Categories: , ,

Description

Hikelok 3M-301R-3-Valve, a cutting-edge solution for precision fluid control in industrial applications. This three-valve manifold is engineered with the highest quality materials, ensuring robust performance and reliability in demanding environments.

Seamless Transition:

Effortlessly transition between various fluid control tasks with the Hikelok 3M-301R-3-Valve. Its three-valve configuration allows for precise manipulation of flow rates, offering unparalleled control and adaptability in your operational processes.

Technical Excellence:

Crafted with precision, this manifold features a rugged design and is constructed from corrosion-resistant materials. The 3M-301R-3-Valve is equipped with advanced engineering to handle high pressures and temperatures, making it ideal for applications in the oil and gas, chemical, and petrochemical industries.

Optimized Performance:

Ensure optimal system performance with the Hikelok 3M-301R-3-Valve, designed to meet the stringent demands of modern industrial processes. The manifold’s innovative design minimizes leakage and pressure drops, guaranteeing efficient fluid control and enhancing overall system reliability.

Key Features:

  • Three-valve configuration for versatile fluid control.
  • High-quality materials for durability and corrosion resistance.
  • Precision engineering for reliable and consistent performance.
  • Suitable for high-pressure and high-temperature applications.

Versatility in Application:

The Hikelok 3M-301R-3-Valve is adaptable to a wide range of applications, including fluid isolation, calibration, and sampling. Its versatile design makes it an essential component for engineers and technicians seeking a reliable solution for intricate fluid control tasks.

Enhance Your Workflow:

Streamline your industrial processes with the Hikelok 3M-301R-3-Valve, providing you with the control and precision needed for optimal performance. Invest in quality, durability, and technical excellence with this manifold, backed by Hikelok’s commitment to engineering excellence.

Upgrade your fluid control capabilities with the Hikelok 3M-301R-3-Valve – where innovation meets reliability for a seamless industrial experience.

Check out our others HIKELOK’s Products : https://midmacinternational.com/product-category/mechanical/hikelok/
