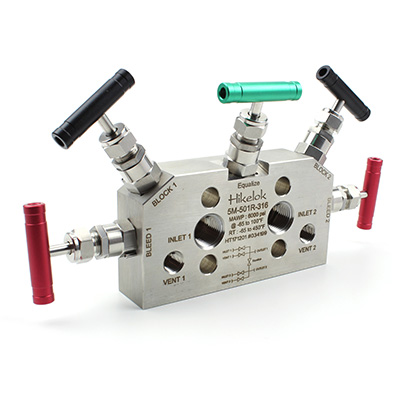

Hikelok 5M-501R-5-Valve

Hikelok 5M-501R-5-Valve manifolds are designed for differential pressure applications. 5-valve manifolds consists of high pressure valve, low pressure valve, balance valve and two check (blowdown) valves. 5-valve manifolds is used for all kinds of imported instruments, and it is installed with all kinds of differential pressure, flow, liquid level and other transmissions. When working, close the two groups of checking valves and balance valves. If inspection is needed, just cut off the high pressure and low pressure valves, open the balance valve and two check valves, and then close the balance valve to calibrate and balance the transmitter.
Features:

  • working pressures: Stainless steel up to 6000 psig (413 bar)
  • Alloy C-276 up to 6000 psig (413 bar)
  • Alloy 400 up to 5000 psig (345 bar)
  • Working temperatures: PTFE packing from -65℉ to 450℉ (-54℃ to 232℃)
  • Graphite packing from -65℉ to 1200℉ (-54℃ to 649℃)
  • Orifice: 0.157 in. (4.0 mm), CV: 0.35
  • Upper stem and lower stem design,
  • Stem threads above packing protected from system media
  • Safety back seating seals in fully open position
  • Testing for every valve with nitrogen at the maximum working pressure
Categories: , ,

Description

Hikelok 5M-501R-5-Valve – Your Ultimate Solution for Precision Control and Reliability

Enhance your industrial processes with the Hikelok 5M-501R-5-Valve, a cutting-edge instrument designed for optimal fluid control and system efficiency. This five-valve manifold is engineered to meet the highest industry standards, ensuring seamless performance in demanding environments.

Precision Engineering for Unparalleled Performance

Crafted with precision engineering, the Hikelok 5M-501R-5-Valve provides unparalleled control over fluid systems. Each valve is meticulously designed to deliver accurate and reliable performance, allowing for precise adjustments in pressure and flow. Transition smoothly between operational states with confidence, thanks to the robust construction and advanced technology embedded within this valve manifold.

Versatile Applications for Diverse Industries

Whether you are in the oil and gas, chemical, or petrochemical industry, the Hikelok 5M-501R-5-Valve caters to a myriad of applications. Its versatility shines through in various processes, offering a reliable solution for pressure measurement, calibration, and isolation of critical components. Transition effortlessly from one task to another, confident in the adaptability of this high-performance valve.

Seal the Deal with Exceptional Leakage Control

Experience unparalleled reliability with the Hikelok 5M-501R-5-Valve’s superior leakage control. Engineered with state-of-the-art sealing technology, this valve manifold ensures minimal to zero leakage, safeguarding your operations and maintaining system integrity. Transition from concerns about fluid leakage to a secure and dependable fluid control solution.

Optimized Design for Simplified Maintenance

Efficiency meets ease of maintenance with the Hikelok 5M-501R-5-Valve. The optimized design allows for quick and straightforward maintenance procedures, minimizing downtime and maximizing productivity. Transition seamlessly from routine maintenance to operational efficiency without the hassle, keeping your processes running smoothly.

Technical Specifications:

  • Material: High-quality stainless steel for corrosion resistance
  • Pressure Rating: Designed for high-pressure applications
  • Temperature Range: Suitable for extreme temperature environments
  • Connection Type: Versatile options for seamless integration
  • Configuration: Five-valve manifold for precise control

Invest in the Hikelok 5M-501R-5-Valve today and experience the pinnacle of fluid control technology. Elevate your industrial processes with a valve manifold that seamlessly transitions between precision, reliability, and efficiency, setting new standards in your industry.
