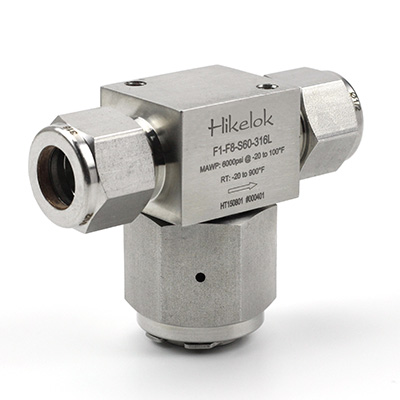

Hikelok F1-Filters
Hikelok Filters-F1 series support endconnections include tube fittings,NPT,and tube socket or tube butt weld ends. Filter element replaceable without removing body filter from installation.Nominal pore sizes for strainer element: 100,150,250 and 450 μm.Maximum working pressure up to 6000 psig (413 bar).The Filter element can be replaced without removing body from system.We provide 304,316 stainless steel materials.
Features:
- Maximum working pressure up to 6000 psig (413 bar)
- Working temperature from -20°F to 900°F(-28°C to 482℃)
- Sizes from 1/8 in to 1 in,6mm to 25mm
- Optional bypass enables a continuous self cleaning flow around the element
- Nominal pore sizes for sintered element: 0.5,2,7,15,40,60 and 90 μmStainless steel construction
- Filter element replaceable without removing body filter from installation
- Stainless steel body material
- Color coded handlesvariety of end connections
